Description
– failure control and resistor simulation for LED direction indicator lights
as well as resistor simulation for all other LED light functions
– the product monitors both tail lights: left and right side
– for use with vehicles with common commercially available
direction indicator monitoring according to the following systems:
warm check, cold check and combination thereof
– incl. power resistor: DI 2x20W, ST 2x20W, TL 2x10W, FL/RV each 20W
– aluminium housing / completely sealed electronics
– for fixation on even, metallic surfaces with
4 x M6 or 2 x M8 or alternatively with metal clamps
– harness: 7 x 1,5mm² + 1 x 2,5mm² – IN 1 x 3,5m – OUT 1 x 1,5m
– automatic overtemperature protection

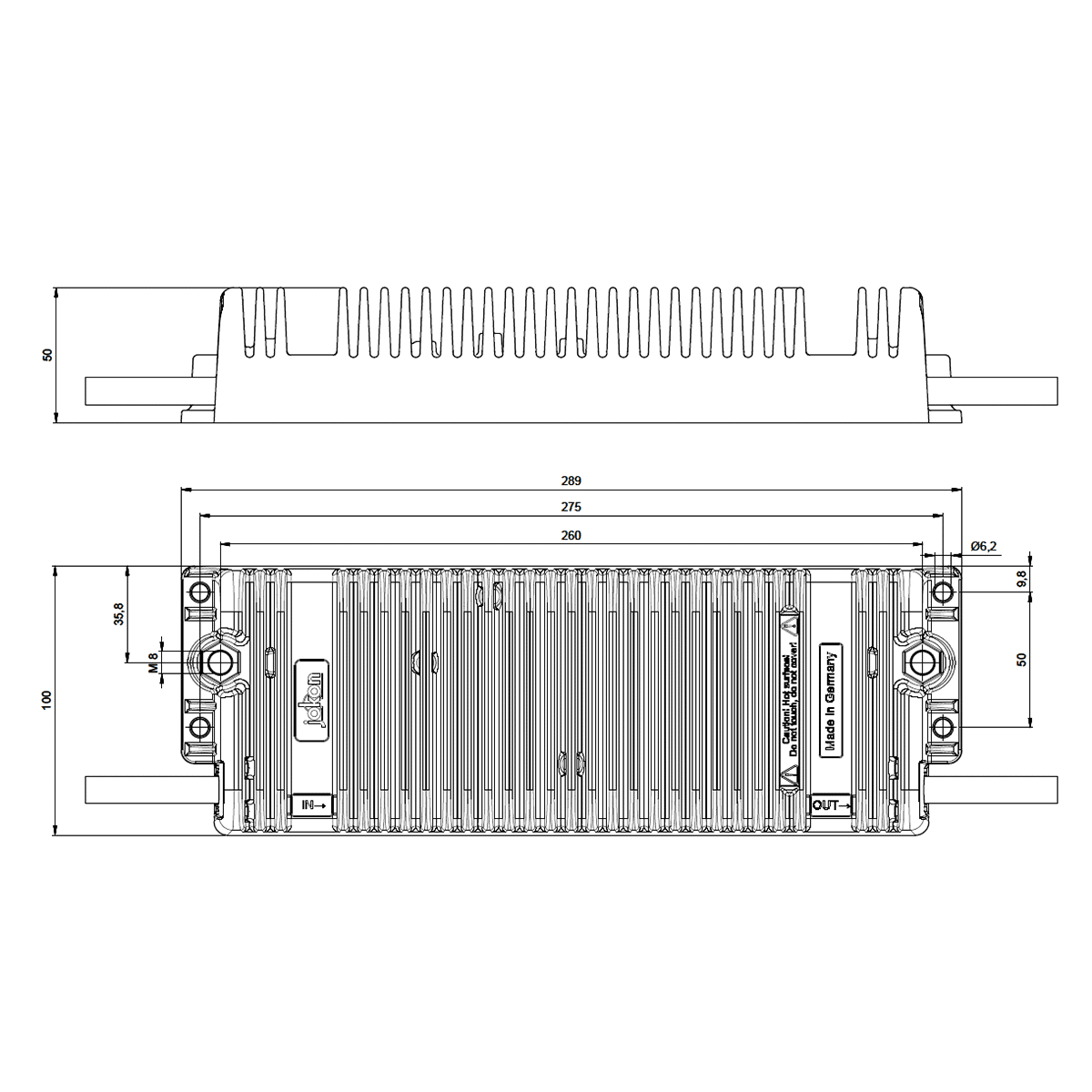

– 289 x 100 x 50 mm
– important notice:
(1) the unit is compatible with almost all vehicles – nevertheless
the compatibility with the used car must be exactly proved before setting
out on the first journey!
(2) the unit can be used only with newly developed JOKON-LED-lights
with „LDC“ (->LED-Defect-Control)!
(3) installation manual must be respected carefully!
(4) delivery on request
