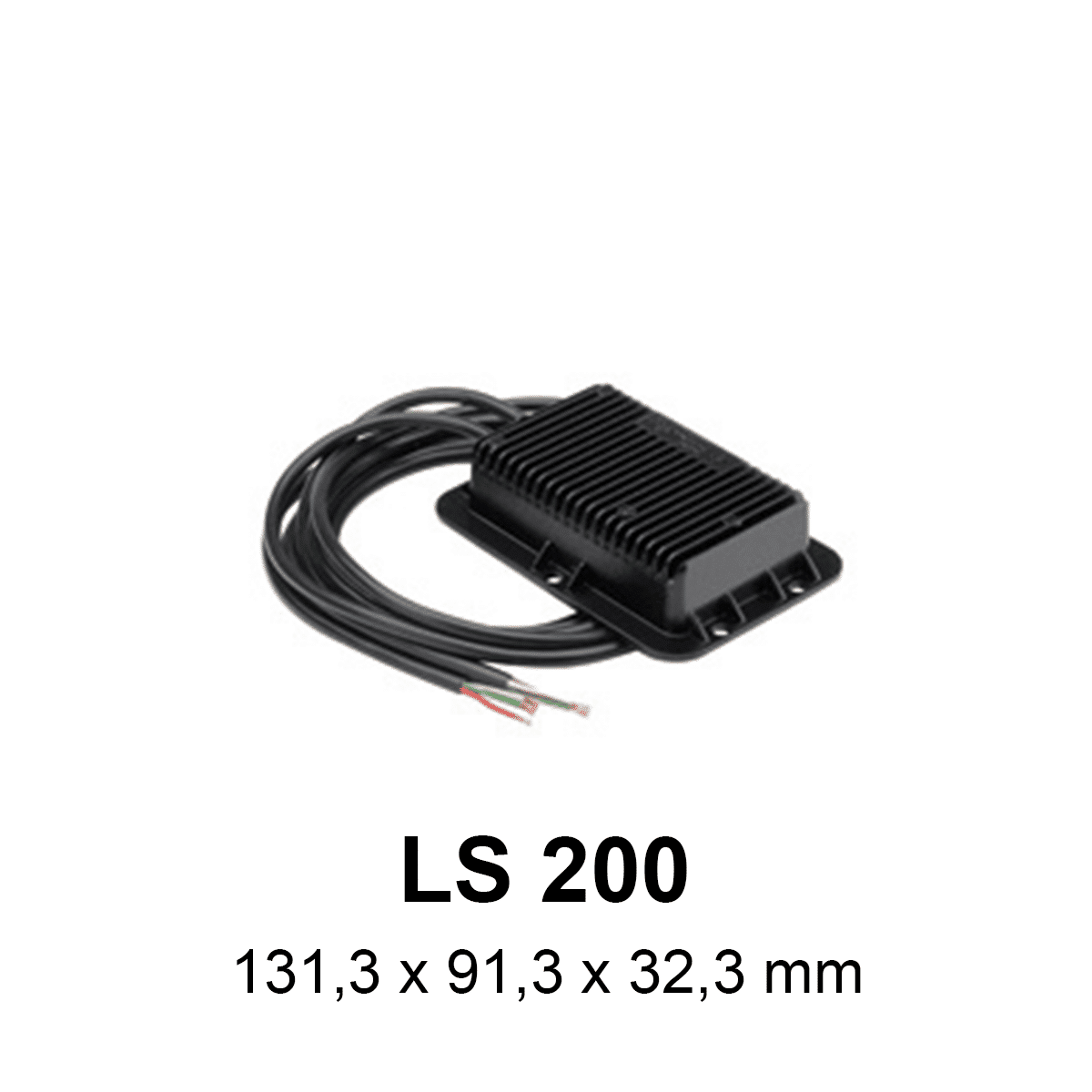

Control Device LS 200

LED lights have significantly less power consumption than bulb lights and behave completely differently from an electronic point of view. The on-board computers of most vehicles are designed to work with trailers equipped with bulb lights. Consequently, various problems may occur when using LED lights and traffic safety is no longer ensured! An additional device is required depending on the light functions to make the lights compatible with towing vehicles. The LK 200 ensures the correct monitoring of direction indicator lights according to ECE-R48. The LS 200 simulates parallel to the LED light a load for one function comparable to that of bulbs for other light functions (stop, tail, fog and reversing light).

SKU: 62.3036.150 Categories: , ,
  • Free global shipping on all orders
  • 30 days easy returns if you change your mind
  • Order before noon for same day dispatch
Guaranteed Safe Checkout


LS 200
– resistor simulation for all other LED light functions
– incl. power resistor for one function: ST 2x20W, TL 2x10W,
FL/RV each 1 x 20W

All devices:
– aluminium housing / completely sealed electronics
– for fixation on even, metallic surfaces with 4 x M5 or alternatively 4 x ST 4,2
– incl. 2 cables ( 1,5m ) for left / right light ( 4×0.75mm² )
– automatic overtemperature protection
– 169 x 96 x 37 mm

important notice:
(1) the unit is compatible with almost all vehicles – nevertheless
the compatibility with the used car must be exactly proved before setting
out on the first journey!
(2) the product can only be used in conjunction with newly developed JOKON LED lights with “LDC” (-> LED defect control) used will!

(3)installation manual must be respected carefully!
(4) delivery on request

Additional information


12 V


2 x 21 W

Material / Colour

Aluminium / PU


2 x 150 mm


Holes 6x M6

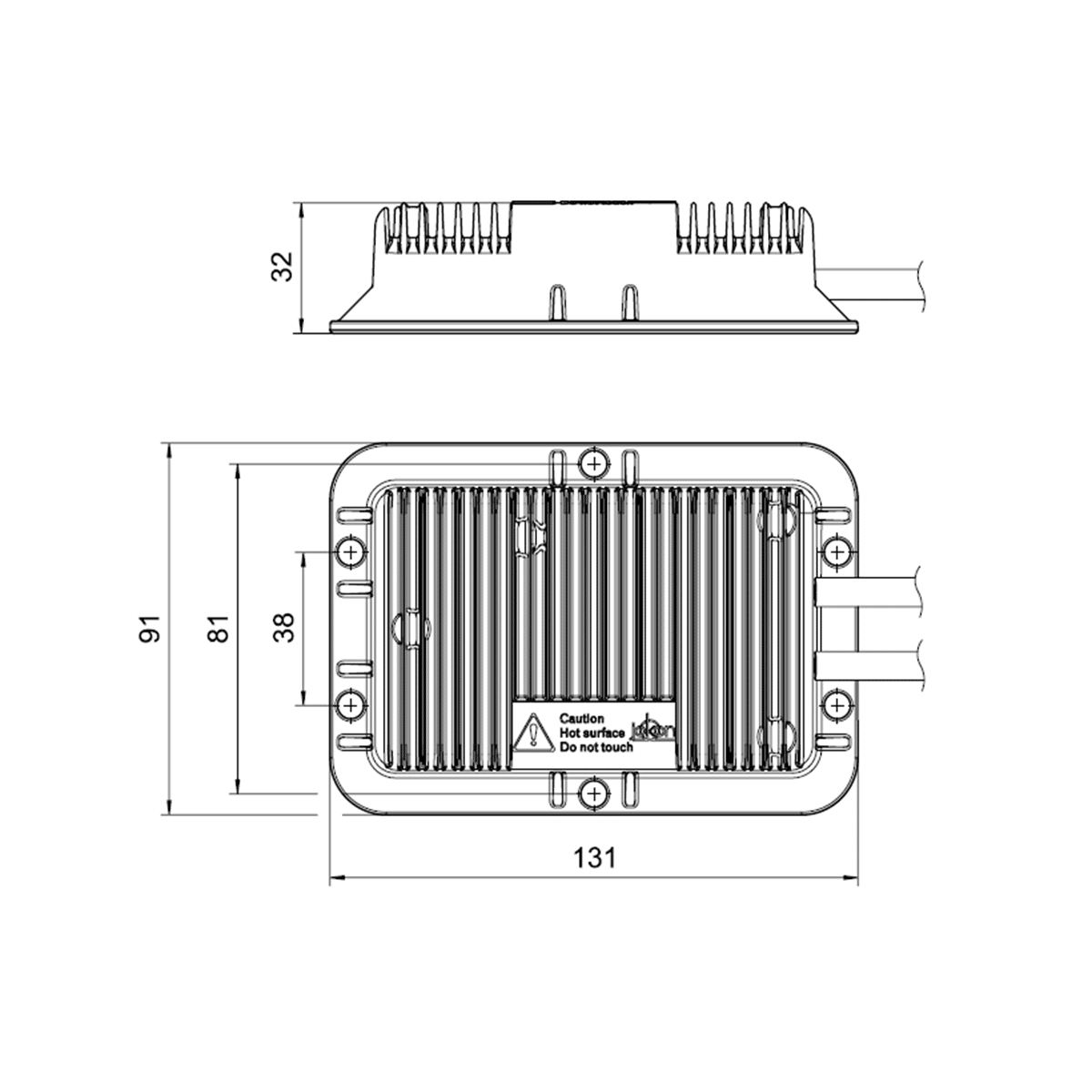

131,3 x 91,3 x 32,3 mm


0,97 kg

IP -Protection class

IP 67

Temperature range

-20 / +50°C


1 pcs.
